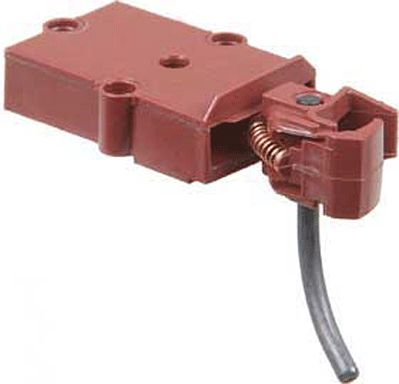

Kadee 801 O Scale Medium Centerset Plastic Couplers, Boxcar Red

The Kadee 801 is a one-pair O scale coupler set featuring Original Style Head medium centerset plastic couplers in brown (boxcar red), supplied complete with plastic gearboxes and lids. Made in the U.S.A., the 801 is a simple drop-in design compatible with all Kadee O scale couplers and works in place of #740, #745, #800, #801, #805, and #816 O scale medium centerset shank couplers. To avoid electrical crossover and shorting, Kadee does not recommend running a metal coupler directly on a metal surface or in a metal draft gearbox.

The 801 package includes 2 #800 Original Style plastic couplers in brown with a medium centerset shank, 2 #817 type plastic gearboxes and lids in brown, and 3 #850 O scale centering springs; it uses #845 O scale knuckle springs. The medium shank measures 47/64" from the knuckle pulling face to the center hole of the draft gearbox, and the #817 gearbox measures 25/32"L x 1/2"W x 7/32"H. Mounting height is 25/32", centerline is 1 1/16", and trip pin height is 1/16"; 2-56 insulated screws are most commonly used. Check installation with the #812 O scale coupler height gauge.

Key Features:
- Part number 801, one pair per package, O scale, brown (boxcar red)
- Original Style Head medium centerset plastic couplers with plastic gearboxes and lids
- Medium 47/64" centerset shank; uses #850 centering springs and #845 knuckle springs
- Includes 2 #800 couplers, 2 #817 type plastic gearboxes and lids, 3 #850 centering springs
- #817 gearbox dimensions 25/32"L x 1/2"W x 7/32"H
- Mounting height 25/32", centerline 1 1/16", trip pin height 1/16"
- Works in place of #740, #745, #800, #801, #805, and #816 couplers; made in the U.S.A.
- Knuckle-style Magne-Matic couplers
