Kadee 18 HO NEM 362 European Couplers Medium Underset .340"

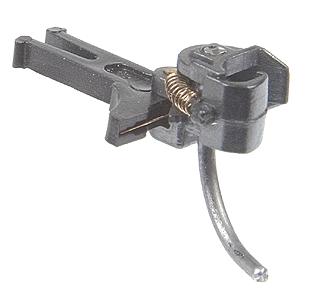

The Kadee 18 is an HO scale Magne-Matic coupler built to the NEM 362 European standard, so it slides into the standard NEM 362 draft gear box pocket found on many European-outline models. It pairs a metal knuckle with a plastic swallow-tail shank and centers using the NEM European-style arrangement, giving you Kadee's dependable knuckle geometry and magnetic hands-free uncoupling on continental equipment. Part 18 uses a Medium underset shank measuring 8.63mm,.340 inch, 11/32" from the pulling face to the dovetail shoulder. Made in the U.S.A.

Part 18 comes assembled, two pairs per package, along with two #622 knuckle springs, and it does not include draft gear boxes since it mounts into the model's existing NEM 362 pocket. Mounting figures include a coupler centerline height of 9.9mm (.390") and a trip pin height of about.031". As with any metal knuckle, avoid seating it against a bare metal surface to prevent electrical crossover. The #206 height gauge, #231 Greas-em, #237 trip pin pliers, and #241 dual tool are handy for installation.

Key Features:
- HO scale Kadee 18 NEM 362 European-style Magne-Matic coupler
- Metal knuckle with plastic swallow-tail shank
- Medium Underset shank, 8.63mm,.340 inch, 11/32"
- Fits the standard NEM 362 draft gear box pocket (gear boxes not included)
- Assembled, 2 pairs per package plus 2 #622 knuckle springs
- Coupler centerline height 9.9mm (.390"), trip pin height about.031"
- NEM European-style centering
- Made in the U.S.A.
