Busch 5962 IR Infrared Light Barrier Switch Unit, All Scale

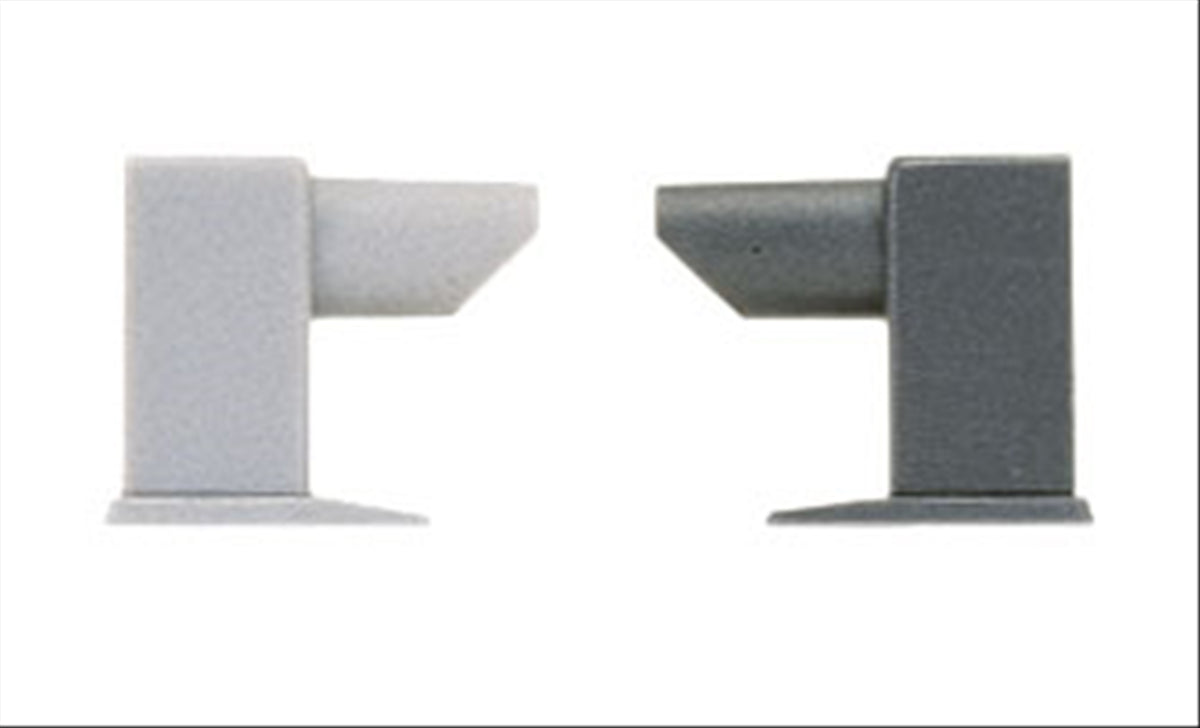

The Busch 5962 is a standard infrared (IR) light barrier consisting of a matched IR transmitter and IR receiver, each measuring 11/16 x 3/8 x 13/16 in. (18 x 9 x 20 mm). The transmitter emits an invisible infrared beam and the receiver registers it; when the beam is interrupted the receiver signals the event, providing contactless, highly reliable triggering with virtually unlimited service life.

Because the light barrier works with very small currents, item 5962 must be used together with Busch control electronics that provide the necessary receiver circuitry, such as time switches 5961/5963, electronic relay 5740, occupancy switch 5743 or control module 5745. Range is up to about 3-15/16 in. (100 mm) with electronic relay 5740 and control module 5745, and up to about 9-13/16 in. (250 mm) with time switches 5961/5963. As an electronic accessory it is suitable for all scales.

Key Features:
- Infrared light barrier (transmitter plus receiver) for automated layout control
- Busch item 5962, suitable for all scales
- Sender and receiver each 11/16 x 3/8 x 13/16 in. (18 x 9 x 20 mm)
- Contactless switching for high reliability and long life
- Range up to 100 mm with 5740/5745, up to 250 mm with 5961/5963
- Requires compatible Busch receiver electronics (5961, 5963, 5740, 5743 or 5745)
